Industrial HMI touchscreen and enclosure

The project

Local control.
Connected to the system.

Touchscreen operation, wired interfaces and protected power in one compact industrial computer. Nitra developed the electronics and embedded Linux platform behind the interface.

Explore the assembly

A CLOSER LOOK

One assembly.
Explore what’s inside.

Scroll to open the device, then select a part to explore it.

Scroll to explore ↓
Assembled industrial HMI
HMI enclosure
PCB in its assembly orientation
PCB turned to reveal its SoM and components
Display assembly
One device, three layers. The PCB turns after opening to reveal the SoM.

01 / ENCLOSURE

The complete assembly.

The enclosure brings the display and embedded electronics into one industrial control computer.

02 / PCB + SOM

The embedded computer.

The STM32MP1 module stays on the custom carrier board, alongside the system interfaces and protected power input.

03 / DISPLAY

The local interface.

A 4.3-inch capacitive touchscreen connects the operator to the embedded Linux platform.

INSIDE THE HARDWARE

The hardware
behind the screen.

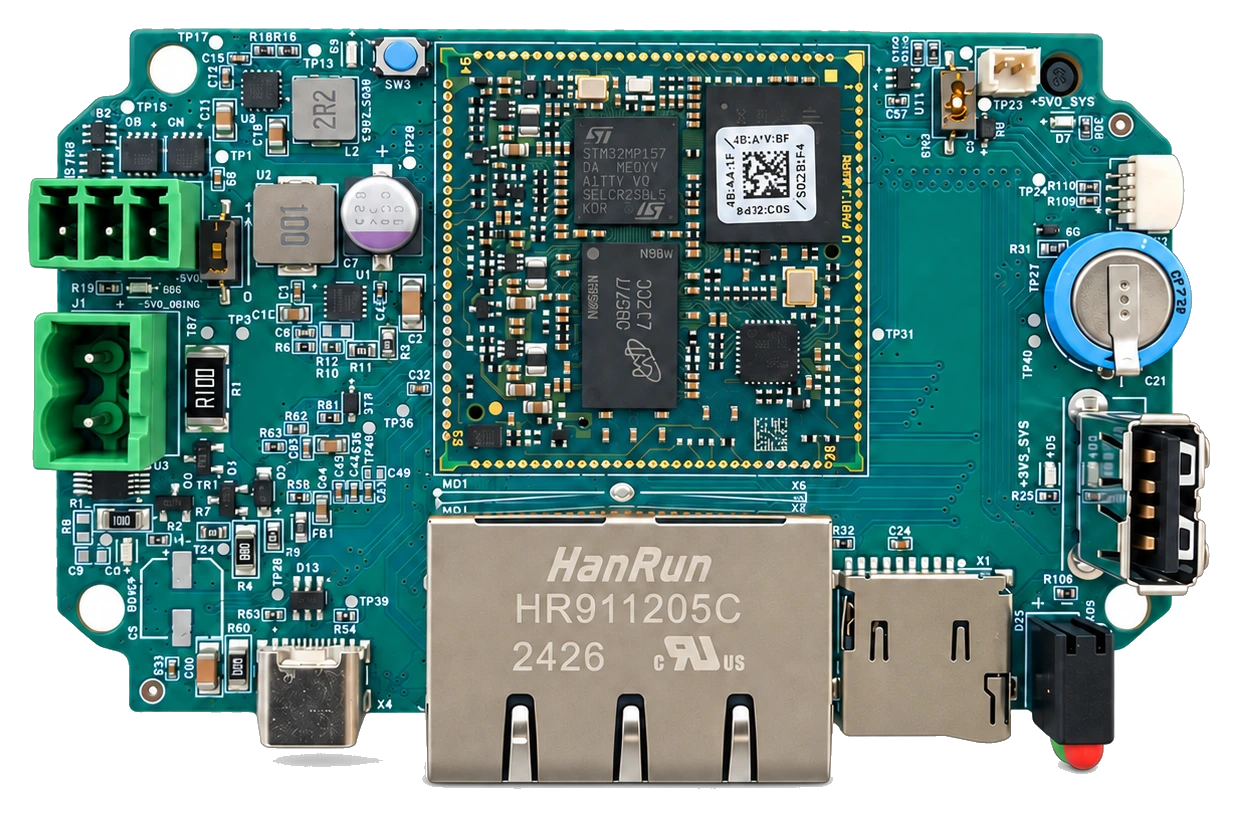

Custom STM32MP1 industrial control board with its original connectors and components
Custom electronics for the industrial control computer.

A custom embedded
computer.

The STM32MP1 platform brings application processing and control onto the same board, with interfaces for the display and the surrounding system.

Processing
Dual Cortex-A7 + Cortex-M4
Software platform
Embedded Linux / BSP
Local interface
4.3-inch capacitive touchscreen
Platform specifications
Processor
STM32MP1 Dual Cortex-A7 + Cortex-M4
Display
4.3-inch capacitive TFT
Ethernet
2 × 10/100 Mbps
Industrial interfaces
Configurable CAN / RS-485 Modbus RTU over RS-485
USB
USB Host / USB-C
Expansion
Expandable I/O
Power
9–30 V input OVP / OCP / reverse polarity protection

NITRA’S CONTRIBUTION

From architecture
to prototype bring-up.

The work connected the custom electronics, system interfaces and embedded software through one development scope.

System architecture & electronics

Embedded computer architecture, schematic and PCB design, protected power input and interface integration.

Embedded Linux & BSP

Linux platform integration and board support package bring-up for the custom hardware.

Prototype bring-up

Bringing the board, touchscreen and peripheral interfaces together as an integrated embedded system.
